Highly Adaptable Safe Reliable Easy To Maintain Roller Crusher
Roll crushers (also known as double roll crushers or twin roll crushers) are suitable for crushing medium-hard materials such as limestone, slag, coke, and coal in industries such as cement, chemical, power, metallurgy, building materials, and refractory materials. This series of double roll crushers mainly consists of rollers, roller support bearings, clamping and adjusting devices, and a drive unit. Roll crushers are classified into: double roll crushers, four roll crushers, and toothed roll crushers.
Key Features and Advantages:
High Efficiency and Energy Saving: Large crushing ratio, low energy consumption, and low over-crushing rate.
Strong Adaptability: Suitable for brittle materials with medium to low hardness (such as coal, limestone, and iron ore), with a wide range of feed particle sizes.
Safe and Reliable: Equipped with hydraulic adjustment, spring safety, or torque-limiting hydraulic coupling, automatically retracting to protect the equipment when encountering uncrushable materials.
Convenient Maintenance: Compact structure, simple operation, and easy replacement of wear parts.
.
Technical specifications of Stone Crusher Machine
| Model |
Centre Distance
(mm)
|
Roller Dia.
(mm)
|
Roller Length
(mm)
|
Feeding Size
(mm)
|
Dischar
Ging Size
(mm)
|
Capa
City
(t/h)
|
Motor Power
(kw)
|
Weight
(t)
|
Outline Size(mm) |
| Length |
Width |
Height |
|
2PCQ
400
|
400 |
450 |
500 |
300 |
50-100 |
50-100 |
30 |
9.3 |
2110 |
2300 |
800 |
| 1000 |
100-200 |
55 |
11.8 |
2560 |
2565 |
800 |
| 1500 |
150-300 |
90 |
12.8 |
3040 |
2615 |
800 |
|
2PCQ
500
|
500 |
600 |
1000 |
500 |
150-250 |
200-350 |
110 |
13.2 |
3859 |
2000 |
900 |
| 1500 |
320-550 |
160 |
17.5 |
4360 |
2200 |
900 |
| 2000 |
420-720 |
110×2 |
23.5 |
5204 |
2400 |
1080 |
|
2PCQ
650
|
650 |
800 |
1500 |
650 |
180-300 |
420-700 |
110×2 |
18.5 |
4850 |
2600 |
1130 |
| 2000 |
550-940 |
132×2 |
26.3 |
5422 |
2600 |
1130 |
| 3000 |
840-1400 |
220×2 |
39.4 |
6480 |
2600 |
1130 |
|
2PCQ
850
|
850 |
1000 |
2000 |
850 |
200-350 |
640-1100 |
160×2 |
48 |
5688 |
3000 |
1390 |
| 2500 |
800-1350 |
220×2 |
56.7 |
6290 |
3000 |
1390 |
| 3000 |
960-1650 |
250×2 |
68 |
7260 |
3000 |
1390 |
|
2PCQ
1000
|
1000 |
1200 |
2000 |
1000 |
250-350 |
800-1200 |
200×2 |
57.6 |
5860 |
3300 |
1700 |
| 3000 |
1200-1700 |
315×2 |
69.8 |
6380 |
3300 |
1700 |
| 4000 |
1600-2200 |
400×2 |
82.9 |
7390 |
3300 |
1700 |
|
2PCQ
1250
|
1250 |
1400 |
2000 |
1300 |
300-400 |
960-1280 |
220×2 |
69.1 |
5980 |
3650 |
2050 |
| 3000 |
1440-1920 |
400×2 |
83.5 |
6500 |
3650 |
2050 |
| 4000 |
1920-2560 |
450×2 |
100.2 |
7520 |
3650 |
2050 |

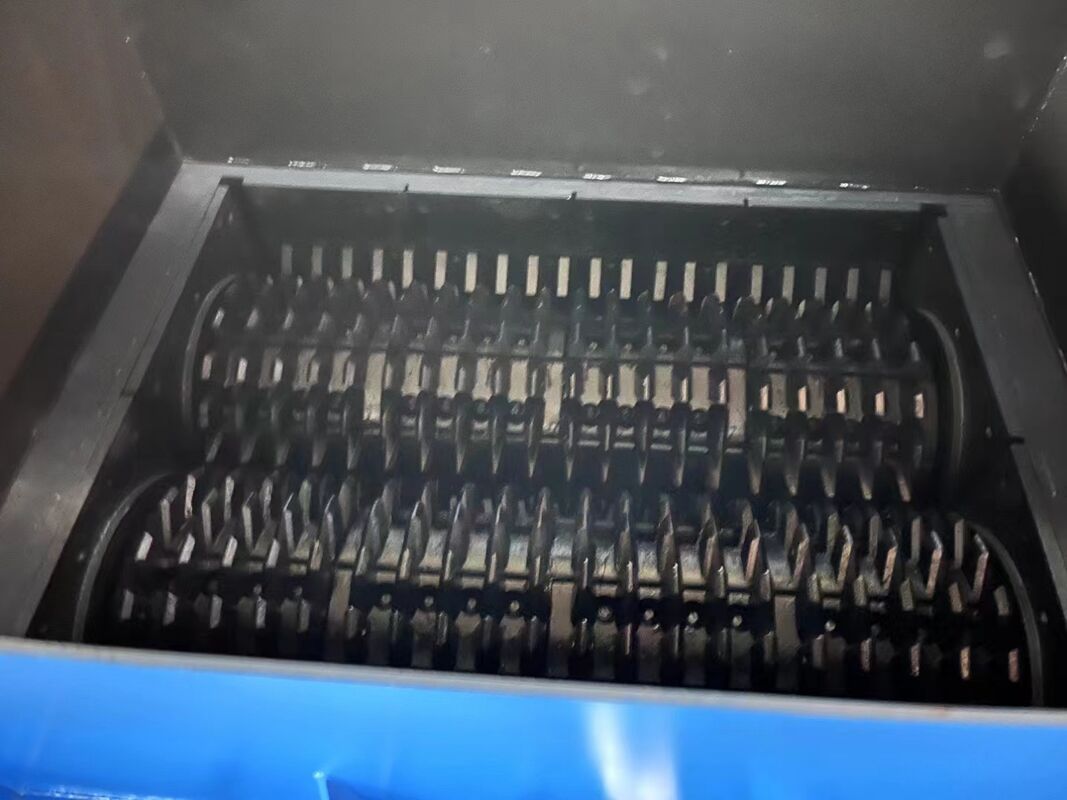

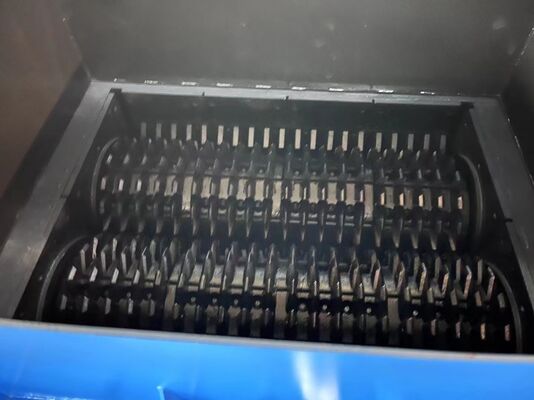

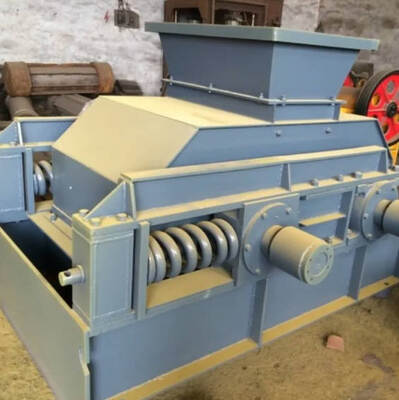

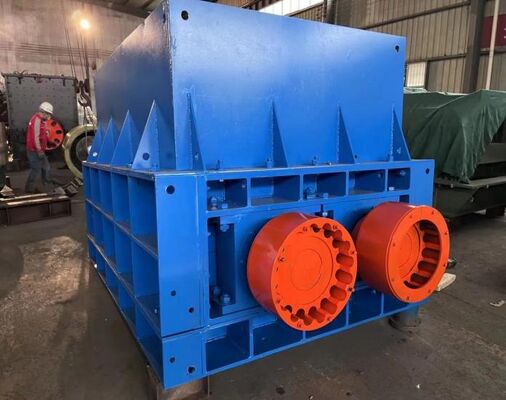

Product Display of Stone crusher machine
Stone crusher machine
FAQ
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
