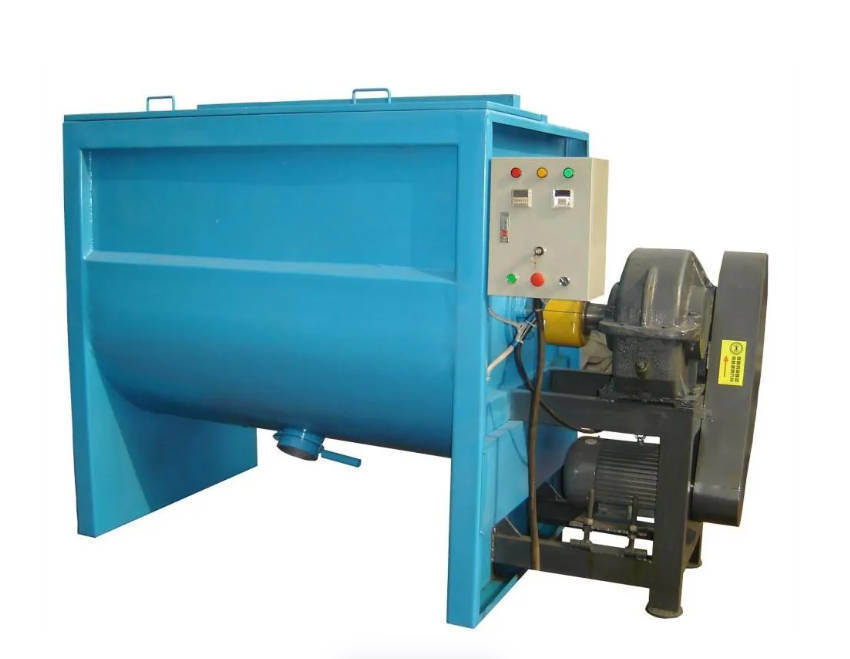

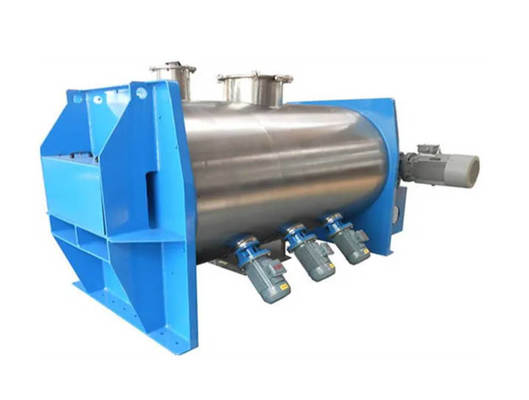

High-Efficiency Continuous Operation Horizontal Force Mixer
Horizontal power mixer is an efficient and continuous mixing equipment, widely used in chemical, building materials, food, metallurgy and other industries
Equipment structure:
The horizontal powerful mixer consists of a frame, cylinder, mixing tool, rake teeth, composite rubber lining, transmission system and control system. The transmission system is composed of hydraulic couplers, triangle belts, torque sensors, explosion-proof motors, hydraulic motors, etc.
Inspection holes are installed on both sides of the horizontal powerful mixer to facilitate operators to inspect and maintain the mixing tools in normal times. Horizontal Power Mixer is durable and easy to repair.
The shape of the mixing tool can be determined based on the mixed material, because the mixed material has different abrasion properties, material specific gravity and properties for the structural components in contact with it, and the selection of the structural parts manufacturing materials needs to be targeted.
· High-quality steel as structural material
Composite rubber lining
·Corresting carbide coating and carbide coating
·High-level alloy steel.
Features
High-efficiency mixing: adopts a horizontal cylinder design and a strong stirring device, the material is fully rolled and stirred, and the mixing efficiency is high.
Continuous operation: supports continuous feeding and discharge, ensuring the continuity and stability of the mixing process, and improving production efficiency.
Mixing: Through strong convection and shearing, high uniformity mixing of materials can be achieved, and even dispersed with trace additives.
Compact structure: small footprint, easy to connect with production lines and easy maintenance.
Multifunctionality: Some models have functions such as dispersion and granulation to meet various process needs
Product parameters of horizontal strong mixer ,Metallurgy Machine
| Model |
Output (t/h) |
Power (kw) |
Dimensions (mm) |
| L |
W |
H |
| HWQ(A)-0816 |
15-25 |
22-30 |
3415 |
1532 |
1045 |
| HWQ(A)-0918 |
30-40 |
30-45 |
4014 |
1777 |
1190 |
| HWQ(A)-1020 |
40-50 |
45-55 |
4341 |
1837 |
1330 |
| HWQ(A)-1120 |
70-80 |
75-90 |
4815 |
2137 |
1450 |
| HWO(A)-1220 |
90-110 |
110-132 |
5052 |
2168 |
1550 |
| HWQ(A)-1224 |
110-130 |
132-160 |
5099 |
3084 |
1550 |
| HWQ(A)-1330 |
150-180 |
160-220 |
6242 |
3282 |
1750 |
| HWQ(A)-1340 |
200-230 |
220-280 |
7503 |
3648 |
1750 |
| HWQ(A)-1540 |
280-330 |
280-355 |
7513 |
3848 |
1935 |
| HWQ(A)-1550 |
350-400 |
355-450 |
8588 |
4968 |
1935 |
