Datos del producto:
Pago y Envío Términos:
|
| Nombre de producto: | Trituradora de carbón selectiva | Tipo: | Equipo de proceso del carbón |
|---|---|---|---|
| Material: | Carbón | Modelo: | Φ2600X5000、 Φ2000×3200 DEL、 Φ2400X3200 |
| certification: | IOS/CE | Uso: | fractura, defendiendo y vestido |
| Tamaño: | como detalles | Capacidad: | como detalles |
| Alta luz: | máquina de la trituradora de carbón 2600X5000,trituradora de carbón móvil 2600X5000,Defender la máquina de la trituradora de carbón |
||
breaking, screening and dressing material Selective Coal Crusher

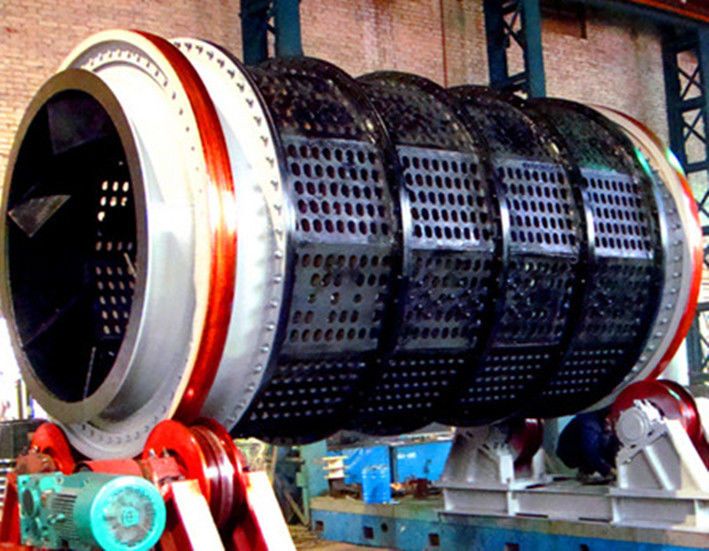

Selective Coal Crusher
The equipment for raw coal roughing integrates breaking, screening and dressing, smashes large coal blocks through strength difference of gangue and coal, and separates coal and gangue through barrel wall gap, and is widely used for top crushing of large and medium coal preparation plants. ZTIC reasonably designs sieve pores for it, reducing blockage and improving efficiency.
Φ2600X5000 Selective Coal Crusher parameters
| 1,Effective diameter of the drum | 2600mm |
| 2,Effective Length Of Drum | 5000mm(Including to screen section) |
| 3,cylinder slope | d=0°(horizontal) |
| 4,drum rotation speed | 13.7rpm |
| 5,Max Feed Size | 300mm |
| 6,Discharge size | <50mm |
| 7,Material falling number | 8—9 |
| 8,capacity | 300t/h(Amount of raw coal) |
| 9,motor | model:JO2-72-6 power:22kw Speed:970rpm Numbe :2 |
| 10, reducer | model:PM650-Ⅵ-3z 1 set PM650-Ⅵ-4 1 set Ratio:i=15.75 |
| 11,Weight(With no load) | 40.9 ton |
| 12,Dimensions:L* W * H | 9580×3410×4910MM |
Φ2400X3200 Selective Coal Crusher parameters
| 1, Effective diameter of the drum | 2200mm |
| 2, Effective Length Of Drum | 3200 mm(Including to screen section) |
| 3, cylinder slope | d=0° (horizontal) |
| 4, drum rotation speed | 13.7 rpm |
| 5, Max Feed Size | 300mm |
| 6, Discharge size | <50mm |
| 7, Material falling number | 8—9 |
| 8, capacity | 120 t/h(Amount of raw coal) |
| 9, motor | model:Y2 200L-6 power:18.5kw Speed:970 rpm Numbe :2 |
| 10, reducer | model:KD80-A 1set KD80-B 1set Ratio:i=15.75 |
| 11, Weight(With no load) | 40.9t |
| 12, Dimensions:L* W * H | 9608×2854×4180mm |
Φ2000×3200 Selective Coal Crusher parameters
| 1, Effective diameter of the drum | 1800mm |
| 2, Effective Length Of Drum | 3200 mm(Including to screen section) |
| 3, cylinder slope | d=0° (horizontal) |
| 4, drum rotation speed | 10.8 rpm |
| 5, Max Feed Size | 300mm |
| 6, Discharge size | ≤50mm |
| 7, Material falling number | 8—9 |
| 8, capacity | 80t/h( Amount of raw coal) |
| 9, motor | Model:Y160M1-4 Power:11KW Speed:1460rpm NO:2 Set |
| 10, reducer | Model:KDK08 1 set NO: 2 Set Ratio:i=24.92 |
| 11, Weight(With no load) | 15.2t |
| 12, Dimensions:L* W * H | 9608×2140×2730mm |
